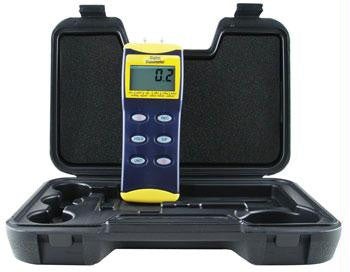

Deluxe Digital Manometers
Industrial requirements such as Manifold Pressure.
-Features & Benefits :
Digital display of gauge or differential pressure
Display unit options: psi, inH2O, bar, mmHg,ozin2, kgcm2, kPa, ftH2O, inHg, cmH2O & mbar
Bright backlight
Min/Max memory + data hold
Simple fittings for hose connection
RS-232 computer interface
CE and RoHS approved
Typical industrial application for:DM8200 Measuring manifold pressure
Specifications :
Measurement Range/Resolution:DM8200: 0 to 100 psi/0.1 psi Measurement Accuracy: ±3% of full scale valueResponse Time: 0.5 secondsOperating Temperature:32° to 122°F (0° to 50°C)Dimensions:7.2 x 2.8 x 1.2 in. (182 x 72 x 30mm)Weight: 7.6 oz. (215g)Power Source: 1 9V battery (included)
Includes :
Connection hose
Molded hard case
Battery
User s manual
-Features & Benefits :
Digital display of gauge or differential pressure
Display unit options: psi, inH2O, bar, mmHg,ozin2, kgcm2, kPa, ftH2O, inHg, cmH2O & mbar
Bright backlight
Min/Max memory + data hold
Simple fittings for hose connection
RS-232 computer interface
CE and RoHS approved
Typical industrial application for:DM8200 Measuring manifold pressure
Specifications :
Measurement Range/Resolution:DM8200: 0 to 100 psi/0.1 psi Measurement Accuracy: ±3% of full scale valueResponse Time: 0.5 secondsOperating Temperature:32° to 122°F (0° to 50°C)Dimensions:7.2 x 2.8 x 1.2 in. (182 x 72 x 30mm)Weight: 7.6 oz. (215g)Power Source: 1 9V battery (included)
Includes :
Connection hose
Molded hard case
Battery
User s manual
