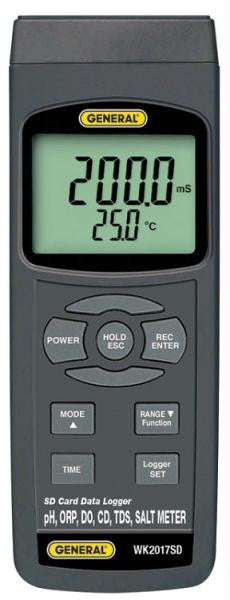

Ph, Orp, Do, Cd, Tds, Salt Meter With Excel-formatted Data Logging Sd Card
Accurately measures conductivity, Total Dissolved Solids (TDS) or salt concentration of a liquid. Optional probes measure pH, ORP (Oxidation-Reduction Potential) and Dissolved Oxygen (DO).
-Features & Benefits :
Will measure Conductivity, TDS, Salt concentration of a liquid, pH, ORP and DO content.
DO measurements can be compensated for salt, altitude and temperature
Also measures oxygen content of a volume of air
Optional ATC probe automatically temperature compensates pH electrode
Displays maximum and minimum readings
Performs real-time automatic data logging at sampling time settable from 1 sec. to 9 hrs.
Also supports manual logging and changing of card storage location
Big (2.5 in. diagonal) front-panel green backlit LCD is easy to read
Auto power off function
Specifications :
Display Size: 2.05 x 1.5 in. (52 x 38mm)
Parameters Measured: pH, ORP, conductivity, TDS content, DO content, salt content
Measurement Range:
For pH: 0 to 14
For ORP: -1999mV to +1999mV
For conductivity: up to 200mS (microSiemens)
For TDS: up to 132,000ppm
For DO: up to 20mg/L
For salt: up to 12% by weight
Measurement Accuracy:
For pH: ± (0.02pH units + 2 digits)
For ORP: ± (0.5% of reading + 2 digits)
For conductivity: ± 2% of full-scale reading + 1 digit
For TDS: ± 2% of full-scale reading + 1 digit
For temperature: ± 0.8°C/± 1.5°F
For DO: ± 0.4mg/L in solution
For oxygen: 0.1% for oxygen in air
For salt: ±0.5% of value
Temperature Compensation:
Automatic between 32° and 150°F (0° and 65°C) when using optional ATC temperature probe
Manually settable between 32° and 212°F (0° and 100°C) without ATC probe
Settable Parameters: Date, time, auto power off, beep sound, sampling time, decimal point or comma decimal division, temperature unit, compensation temperature. Also salt and altitude compensation (DO mode only)
Operating Temperature: 32° to 122°F (0° to 50°C)
Includes :
Hard carrying case
Combination conductivity/ TDS/salt probe (P/N CDPB03)
2 GB SD memory card
User s manual
1 Year Limited Warranty
