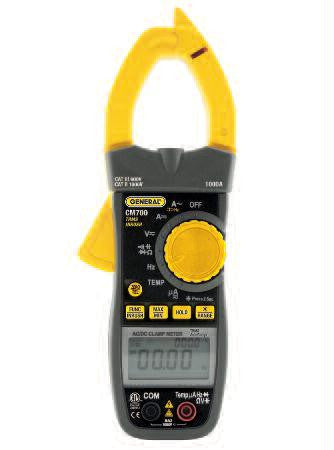

New Dual Display Amp Clamp W- Ac-dc Amps, True Rms, Ncv, 1000v,1000a, 0.1 Resolution

16 functions, 49 ranges (CM660/CM700); 17 functions, 51 ranges (CM770)

Measures temperature from -58° to 1112°F (-50° to 600°C) using included "K " type stem thermocouple

Also measures surface temperature from -4° to 662°F (-20° to 350°C) using 6:1 D:Sdetachable IR thermometer with fixed emissivity and measurement hold button (CM770 only).When IRT is re-attached, its reading is optically coupled onto meter "s display.

Uses beeper to verify integrity of diodes and check circuits for continuity

0 to 200μA/2000μA AC/DC ranges for measuring flame rod current with 0.1μA/1μAresolution using included test leads

Built-in Non-Contact Voltage (NCV) detector with 4 sensitivity settings & audible and visual alerts

Large backlit digital LCD with two 6000-countreadouts for simultaneous display of real-time current or voltage on primary readout and line frequency on secondary readout

Fast-response analog bar graph

Bright LED work light

Auto and Manual ranging and MIN/MAX options

Data HOLD and REL (zero) buttons

INRUSH mode for measuring surge current during motor startup

1.65 in. (42mm) jaw opening (largest in its class) for conductors up to 550 MCM resists side torque

Rugged housing can withstand multiple drops onto concrete from height of 5 ft. (1.6m)

ETL certified CAT III 600V, CAT II 1000V

AC Voltage Ranges / Accuracy: 0 to 600mV/6V/60V/600V/1000V / ±(0.8% + 3 digits)

DC Voltage Ranges / Accuracy: 0 to 600mV/6V/60V/600V/1000V / ±(0.5% + 3 digits)

AC Current Measurement Ranges / Accuracy: 0 to 60A/600A (CM660), 0 to 60A/600A/1000A(CM700/CM770) / ±(1.8% + 5 counts)

DC Current Ranges (via clamp) / Accuracy: 0 to 60A/600A (CM660), 0 to 60A/600A/1000A(CM700/CM770) / ±(3% + 5 digits)

Resistance Ranges / Accuracy: 0 to 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ /±(0.8% + 3 digits)@<1MΩ; ±(1.2% of reading+ 3 digits)@≥1MΩ

Frequency Ranges / Accuracy: 10Hz to60Hz/600Hz/6kHz (clamp jaw); 10Hz to60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/60MHz(test leads) / ± (1.5% + 5 digits) (clamp jaw); ±(0.3% + 5 digits) (test leads in Hz mode)

Capacitance Ranges / Accuracy: 0 to 6nF/60nF/600nF/6μF/60μF/600μF/6000μF/60,000μF / ±(4% + 5 digits)@>10nF)

IRT Emissivity: Fixed at 0.95

Temperature Range (via "K " type thermocouple) /Accuracy: -58° to 1112°F (-50° to 600°C) /±(2% + 2 digits)

Temperature Range (via integrated IRT)/Accuracy (CM770 only): -58° to 1112°F (-50° to 600°C)/ ±4.5°F from -4° to 32°F;±(1.5% + 3.6°F) from 32° to 662°F

Duty Cycle Range / Accuracy: 1 to 99% / ±3%

Maximum Resolutions: 0.1A (CM600), 0.01A(CM700/CM770), 0.1mV, 0.1Ω, 0.01Hz,0.001nF, 2°F/1°C, 0.1%

Clamp Jaw Opening: 1.65 in. (42mm)

Dimensions of CM660/CM700: 8.86 x 3.31 x 1.30 in. / (225 x 84 x 33mm)

Dimensions of CM770: 9.37 x 3.62 x 1.97 in. (238 x 92 x 50mm)

Weight (including batteries): 14.8 oz. (420g) Power Source (included): 3 "AAA" batteries(CM660, CM700); 3 "AAA " batteries + 2 "LR44 "batteries (CM770)

Double-Insulated Test Leads with Screw-On Alligator Clips

"K " Type Stem Thermocouple Probe And Plug Adapter

Batteries

Soft Pouch

User "s Manual

3 Year Limited Warranty
