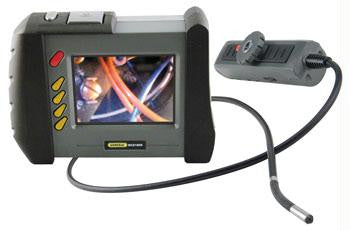

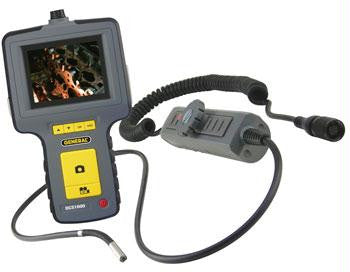

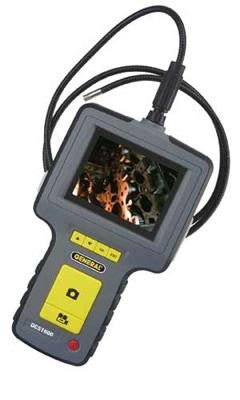

High-performance Recording Video Borescope System
Portable, hand-held, complete hi-performance Borescope system with monitor, camera and video. Features slim 5.5mm diameter probe, 3.5 in. color monitor and powerful recording capability. Optional ultra-slim, multi-view and articulating probes available.
-
-
-
Features & Benefits :
Display
Display
- 3.5 in. (88.9mm) extra-wide, color TFT monitor with super sharp clarity
- Records video and still images with instant playback review
- Multiple language menu
- AV out allows for TV monitor and computer interfaces
- View findings in real time or record video and still images for output later
- Rechargeable batteries can record for 4 hours and will help you stay "Green"
- 3 interchangeable mirrored viewing tips provide extra wide view angles of 70§, 90§, 110§
- Optional Click 'N Measure software for sophisticated target analysis
- Rechargeable internal batteries
- Interchangeable accessories provide additional function
- More value for your investment
Probe
- The system uses our thinnest probes, with diameters as small as 3.9mm (0.15 in.). Even our thickest high-performance probe, at 6mm across, is no thicker than a No. 2 pencil lead.
- Comes with a 1m (3.28 ft.) long, 5.5mm (0.22 in.) diameter, flexible-obedient probe that retains its shape. Depth of field is 10 to 60mm (0.4 to 2.4 in.)
- Optional probes include: 3.9mm diameter x 1m long ultra slim probe, 4.9mm x 1m long switchable front/side view probe and 6.0mm x 1m long articulating probe
- Ultra slim probes with powerful video camera and LED lights in the tip enable user to inspect the tiniest spaces
- Optional 3.9mm (0.15 in.) diameter camera tipped probe is the slimmest on the market and can fit into the spark plug hole of any engine, as well as into diesel injector ports
- All probes feature adjustable super-strength white LED lights inside the tip for optimized illumination
- All probes are water, oil, dust and scratch resistant to IP67 standards
- The probes have superior optical specs, including a depth of field of 0.4 to 2.4 in. (10 to 60mm).
- Probe choices abound. Just pick the probe type (flexible-obedient or soft metal), probe diameter (3.9mm, 4.9mm, 5.5mm or 6m), probe length (0.75 to 30m) and viewing angle (front view, articulating or switchable front/side view) you need; one of our probes is sure to fill the bill.
Applications:
- Aircraft Maintenance and Inspection
- Military, Security, Law Enforcement
- Automotive / Diesel Maintenance
- Other High Level Inspection
Specifications :
- Probe: 5.5mm (0.22 in.) Diameter x 1m (3.28 ft.) long camera probe
Depth of Field (DOF): 10 to 60mm (0.4 to 2.4 in.)
Probe Feature: Water, Oil & Dust resistant to IP67 standards
Field of View: Horizontal field angle 46° Vertical field angle 34° Diagonal field angle 56° - Optional 5.5mm Probe Lengths: 1m, 2m, 3m, 5m, 10m, 30m
Additional Optional Probes:
- 3.9mm diameter x 0.75m (2.5 ft.) long ultra-slim probe
- 4.9mm diameter x 1m long switchable front/side view probe
- 6.0mm diameter x 1m long articulating probe
- Display: 3.5 in. (88.9mm) Color TFT
- Display Resolution: 320 x 240 pixels (video); 640 x 480 pixels (still images)
- System Power: Battery: Rechargeable Li-Polymer Battery (3.7V)
- Adapter/Charger Supply: 120VAC @ 60 Hz or 240VAC @50 Hz
- Power Consumption: 1.8A @5.5VDC
- Video Out Format: NTSC and PAL
- Interface: AV Out & USB
- Compression Format: Compliant with MPEG4
- Still Image Resolution: 640 x 480 Pixels
- Video Resolution: 320 x 240 Pixels
- Frame Rate: ~30 fps
- Exposure: Automatic
- White Balance: Fixed
- S/N Ratio: 42dB or more
- Languages: English, German, French, Spanish
- Operating Environment: -4° to 140°F (-20° to 60°C)
- Storage Environment: -4° to 140°F (-20° to 60°C)
- Recharge Environment: 32° to 104°F (0° to 40°C)
- Interchangeable Options:
- Click 'N Measure Software
- No. DCS1618M
- Set of 3 Mirrored Viewing Tips
No. PM003 (70°, 90°, 110°)
Includes :
- Custom Hard Case
- 5.5mm (0.22 in.) Diameter x 1m (3.28 ft.) Long Camera Probe
- 2GB SD Card
- RCA Cable
- Interchangeable Mirrored Viewing Tips (70§, 90§, 110§)
- LCD Cleaning Cloth
- AC Adapter/Charger
- Rechargeable Battery
- User's Manual
- Year Limited Warranty
-
